Onefive拥有专业激光物理国际研发团队,主要产品有低噪声飞秒激光器、低噪声皮秒激光器、高功率飞秒激光器和高功率皮秒激光器等。Onefive超快激光器主要应用于CPA系统飞秒种子源、太赫兹、双光子显微、超低相位噪声时钟、光学频率疏、超连续谱产生、光学相干断层扫描、激光雷达(LIDAR)、UV诊断、微加工等领域。

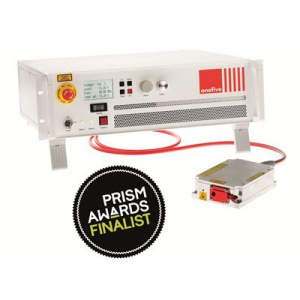

Onefive皮秒光纤激光器高能量皮秒激光器Katana
?Katana HP高功率皮秒激光器
产品特性:
-多波段覆盖
-30ps-10ns脉宽选择
-连续可调重复频率
-主从模式
-外触发
-即开即关
-免维护,无需校准
-高重复性和稳定性, 24/7运行
典型应用:
-STED显微光源
-傅里叶显微成像
-太阳能电池表面处理
-光谱显微
-激光测距
Laser specifications | Katana–05HP | Katana–06HP | Katana–08HP | Katana–10HP | Katana–12HP | Katana–15HP |
Center wavelength | 515-532 nm | 556 - 660 nm | 775 nm | 1030-1064nm | 1112-1320nm | 1550 nm |
Pulse Duration | < 30 ps – 10ns | <200ps–10ns | < 30 ps – 10ns | < 30 ps – 10ns | <200ps–10ns | < 30p –10ns |
Average output power (up to) | 5 W | 1 W | 8 W | 20 W | 2W | 14 W |
Pulse energy (up to) | 10 μJ | 50 nJ | 1 μJ | 20 μJ | 100nJ | 3 μJ |
Peak power up to) | 500 kW | 100 kW | 10 kW | 1 MW | 200kW | 100 kW |
Pulse repetition rate | pulse-on-demand – 100 MHz | |||||
Spectral bandwidth | >0.1 nm | |||||
Beam quality | M? < 1.3, TEMοο |
